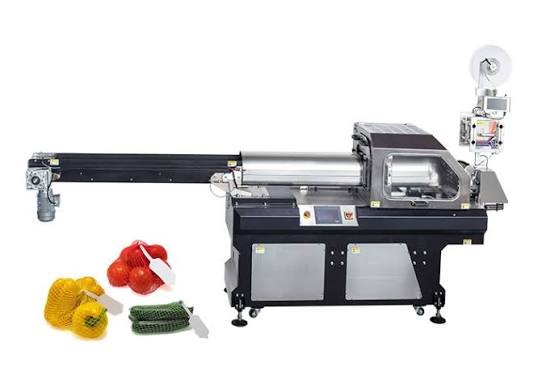

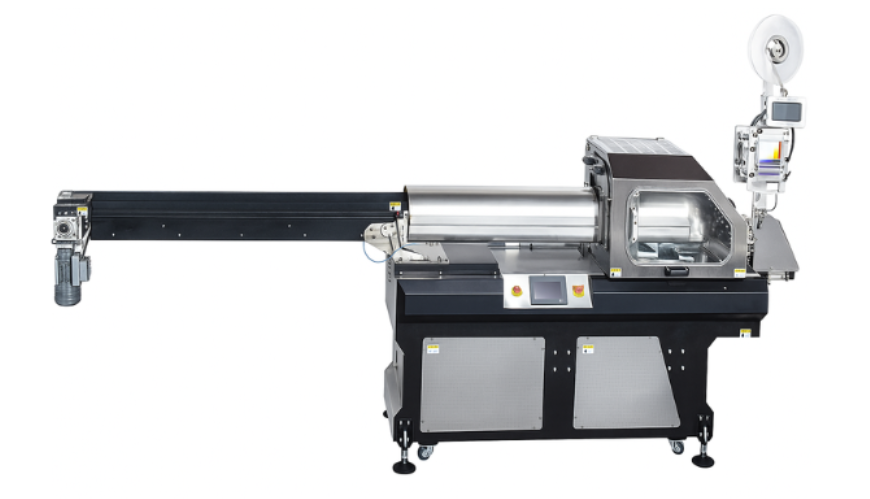

Automatic Horizontal Net Bag Clipping Machine
The Automatic Horizontal Net Bag Clipping Machine is designed for high-speed horizontal packaging of fruits, vegetables, shellfish, and other products in woven net bags. It securely closes each package with durable metal clips while providing gentle product handling, making it ideal for delicate produce destined for retail and export markets.
Equipped with a mechanical and pneumatic drive system, PLC-based touch screen controls, and a precision conveyor transport mechanism, the machine delivers consistent bag quality with production speeds of up to 30 bags per minute. Its large-capacity net tube, quick format changeover, hygienic stainless steel construction, and easy maintenance ensure reliable, continuous operation in demanding industrial packaging environments.
Technical Specifications
| Maximum Packing Weight | Up to 5 kg |
|---|---|
| Production Capacity | 15–30 Bags/Minute |
| Voltage | 220V AC, Single Phase, 50/60 Hz |
| Power Consumption | 2.6 kW |
| Air Consumption | 1.5 m³/hour |
| Machine Dimensions | 3850 × 1000 × 2200 mm (L × W × H) |
| Machine Weight | 450 kg |
| Control System | PLC with Colour Touch Screen |
| Package Size | Up to 300 × 200 × 110 mm |
| Handle Tape Width | Up to 27 mm |
Material Construction
| Machine Structure & Frame | Cast Iron |
|---|---|
| Net Tube | AISI 304 Stainless Steel |
| Clipping Head | Hardened Special Material |
| Contact Parts | AISI 304 Stainless Steel & Anodized Aluminium |
Machine Features
- Mechanical and pneumatic drive system for reliable high-speed operation.
- Package format change without mechanical adjustments for cartons up to 300 × 200 × 110 mm.
- Moulded stainless steel net tube (Ø260 mm × 1200 mm).

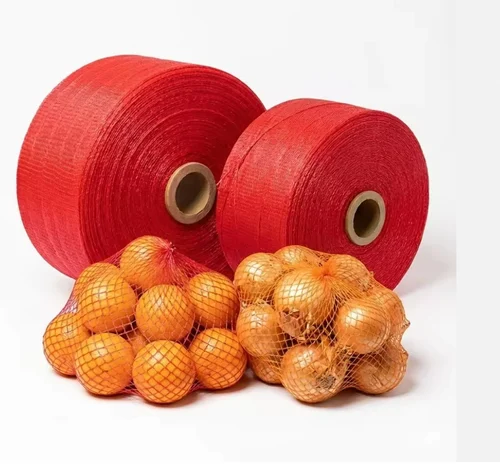

- Large net tube capacity supporting over 300 metres of woven net.
- Counter-rotating rubber roller system ensures smooth and accurate net feeding.
- Supports wineglass labels of various lengths.
- Automatic application of carrying tape up to 27 mm wide.
- PLC controlled colour touch screen with alarm management.
- Real-time production indicator displaying bags per minute.
- Gentle conveyor belt transport system protects delicate fruits and vegetables.
- Traditional metal clip closing using 5 × 0.30–0.35 mm clips.
- LED illuminated and easily accessible clipping head for quick clip replacement.
- Hygienic stainless steel construction for easy cleaning and sanitization.
- Continuous industrial production with minimal downtime.
- Simple operation and user-friendly controls.
Key Highlights
30
Bags/Minute
5 kg
Maximum Pack Weight
300 m+
Net Capacity
PLC
Touch Screen Control

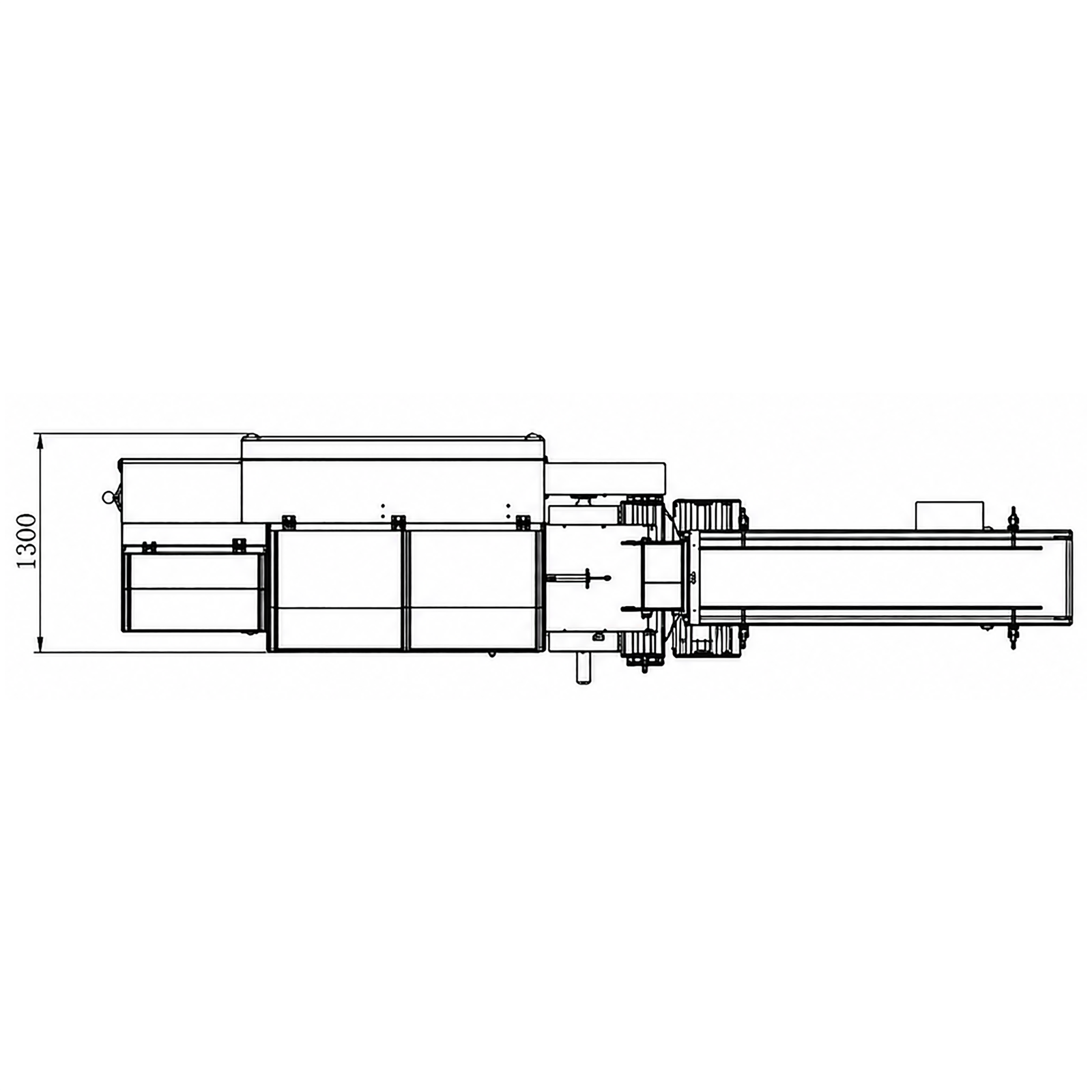

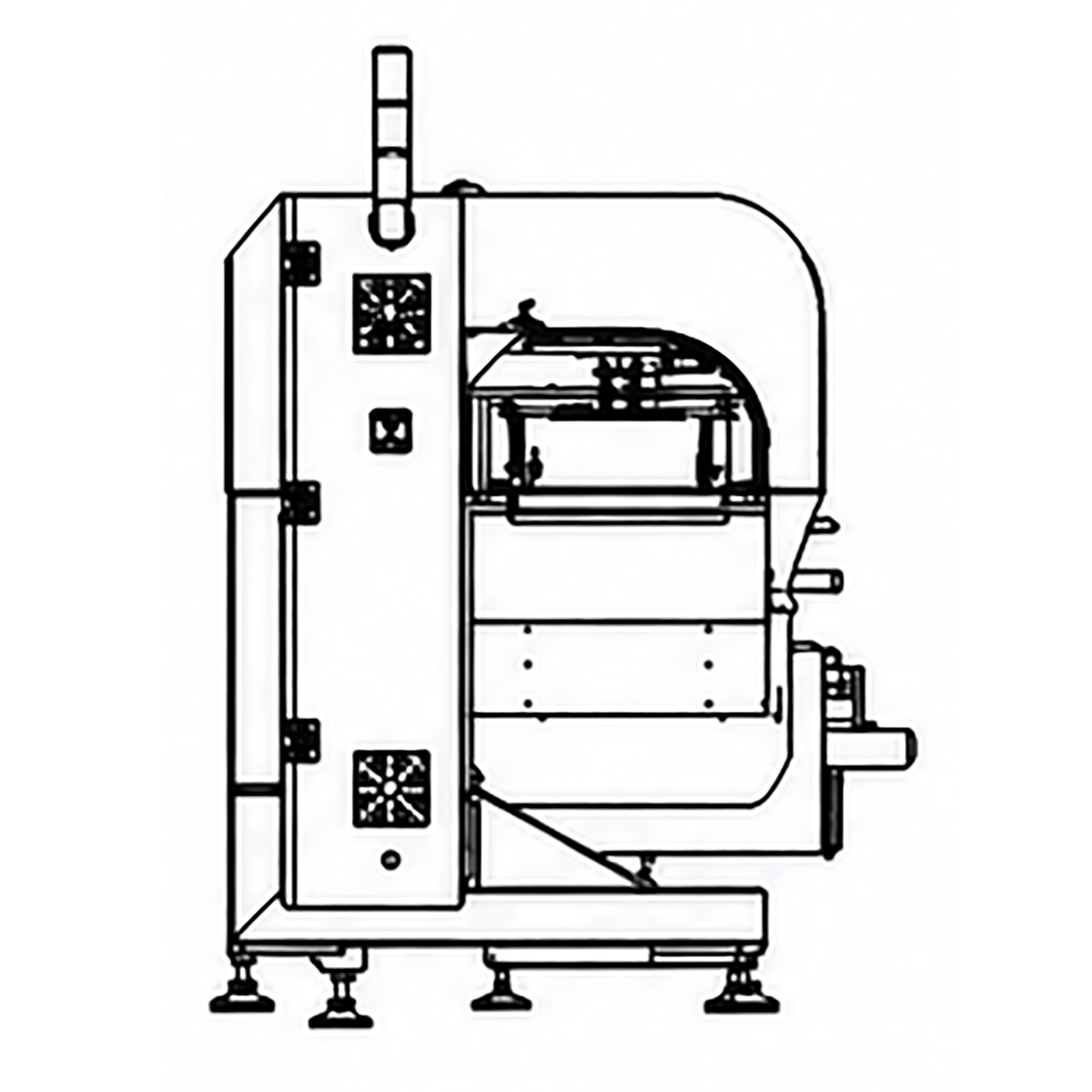

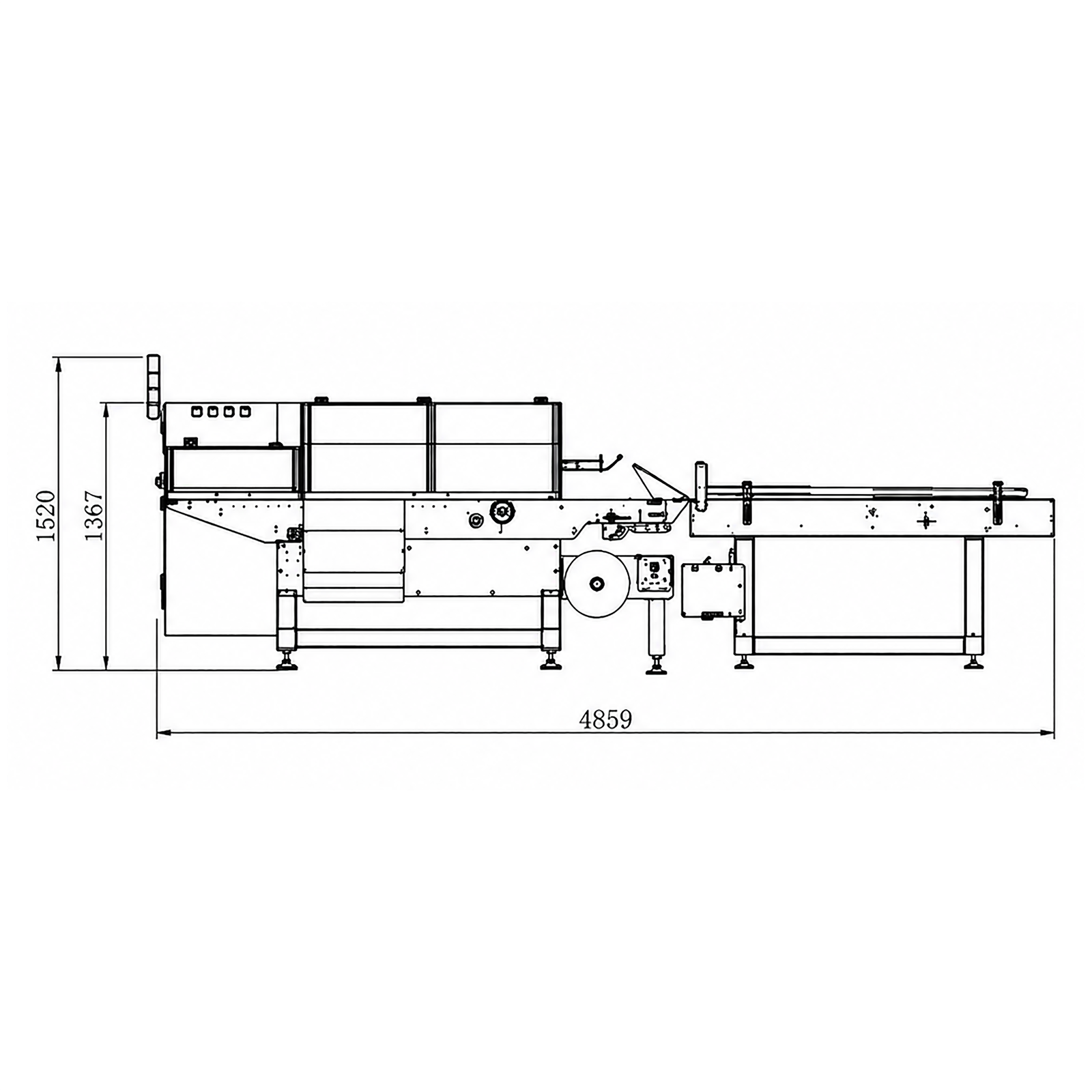

Dimensions
Applications
The Automatic Horizontal Net Bag Clipping Machine is designed for high-speed horizontal net bag packaging of fresh fruits, vegetables, shellfish, nuts, and other industrial products. Its gentle conveyor handling system ensures excellent product protection while delivering consistent, retail-ready packaging for domestic and export markets.
Benefits of the Automatic Horizontal Net Bag Clipping Machine
Designed for continuous industrial packaging, the machine provides high-speed, gentle handling, hygienic operation, and reliable clipping for fruits, vegetables, shellfish, and other net-packed products.
High Productivity
Packages up to 30 bags per minute, improving production efficiency.
Gentle Product Handling
Conveyor-based transport minimizes bruising and protects delicate produce.
Fast Changeovers
Package format changes require no mechanical modifications, reducing downtime.
Large Net Capacity
Holds more than 300 metres of woven net for longer uninterrupted production.
Easy Cleaning
Stainless steel food-contact parts simplify sanitation and maintenance.
Reliable Industrial Performance
Mechanical and pneumatic drive with PLC control ensures stable, continuous operation.
Advantages of Automatic Horizontal Net Bag Clipping Machine
Improve in-store packaging efficiency with accurate weighing, intelligent labeling, and seamless integration for modern retail and food processing operations.
High-Speed Continuous Packaging
Produces up to 30 net bags per minute with consistent clipping quality for continuous industrial packaging.
Flexible Package Format
Supports carton sizes up to 300 × 200 × 110 mm without requiring mechanical adjustments, reducing setup time.
Gentle Product Transport
The conveyor belt transport system protects delicate fruits and vegetables while maintaining excellent packaging quality.
Hygienic & Durable Construction
Constructed using AISI 304 stainless steel, anodized aluminium, and hardened components for long service life, easy cleaning, and dependable operation.
