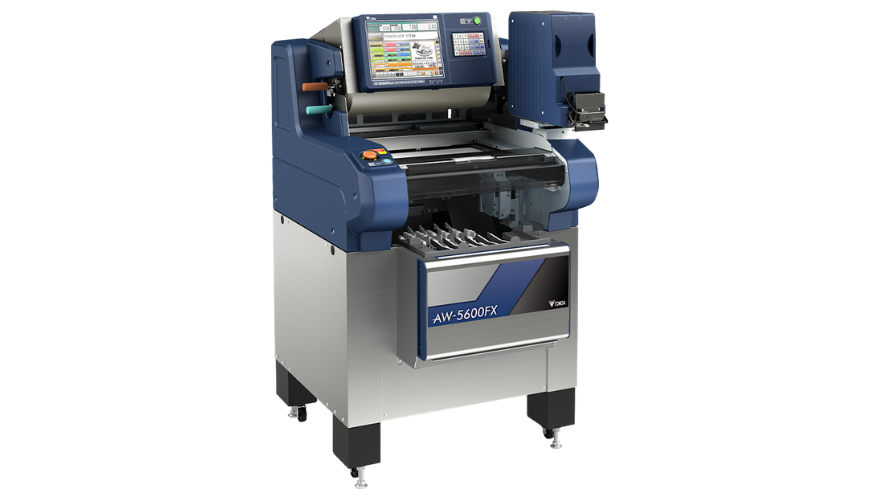

SEMI - AUTOMATIC CLING WRAPPER MACHINE (AW5600FX)
The AW-5600FX Semi-Automatic Cling Wrapper Machine is DIGI's latest generation integrated weigh-wrap-label system, engineered to deliver maximum flexibility for modern food retail and processing environments. It efficiently wraps, weighs, and labels a wide variety of products, including fragile trays, irregularly shaped packages, and even trayless items such as whole fruits and cheeses.
Featuring an enhanced impulse heat sealer, increased air supply, and an intuitive user interface, the AW-5600FX improves packaging productivity while reducing operator errors. With its compact footprint, high-quality wrapping performance, and support for eco-friendly linerless labels, it is the ideal solution for supermarkets, food processors, meat shops, and fresh produce packaging operations.
Technical Specifications
Wrapping
| Wrapping Speed | Maximum 17 packages/min. |
|---|---|
| Package Size |
Width: 80 to 350 mm Height: 10 to 130 mm Depth: 80 to 230 mm * The maximum dimensions cannot be used simultaneously. The maximum package size that can be wrapped also depends on the film used. |
| Film Size | Accepts 350 to 500 mm film rolls |
Weighing
| Multi Interval | Single Interval | ||
|---|---|---|---|
| Capacity | Max. 6/15 kg | Max. 3/6 kg | Max. 30 lb |
| Scale Interval | e = 2/5 g | e = 1/2 g | e = 0.01 lb |
| Weighing Range | 40 g – 15 kg | 20 g – 6 kg | 0.20 – 30 lb |
Labeling
| Die-cut Label | Linerless Label | |
|---|---|---|
| Label Type | Die-cut Label | Linerless Label |
| Label Width | 25–80 mm (0.98–3.1 inches) |
44–59 mm (1.73–2.3 inches) |
| Label Length | 20–105 mm (0.79–4.1 inches) |
20–500 mm (0.79–19.7 inches) * Maximum printing length is 300 mm (11.8 inches). |
| Net Weight | Approx. 250 kg | |

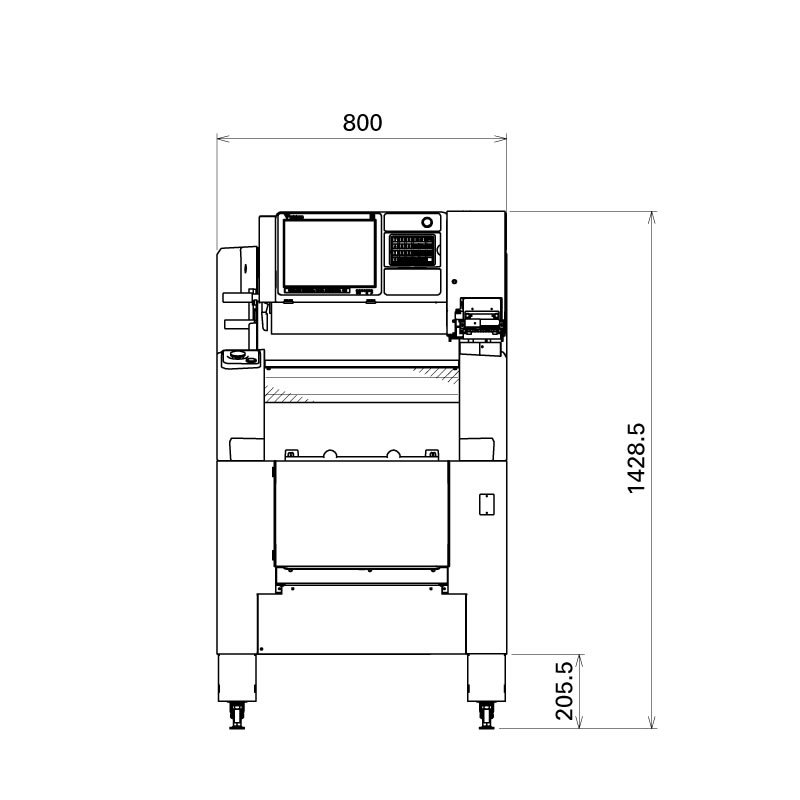

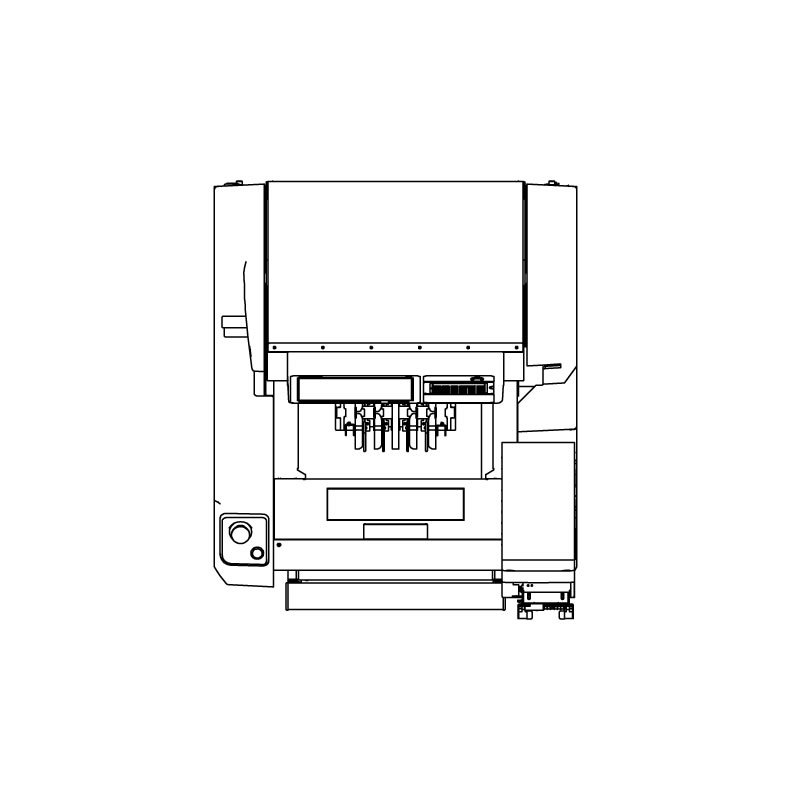

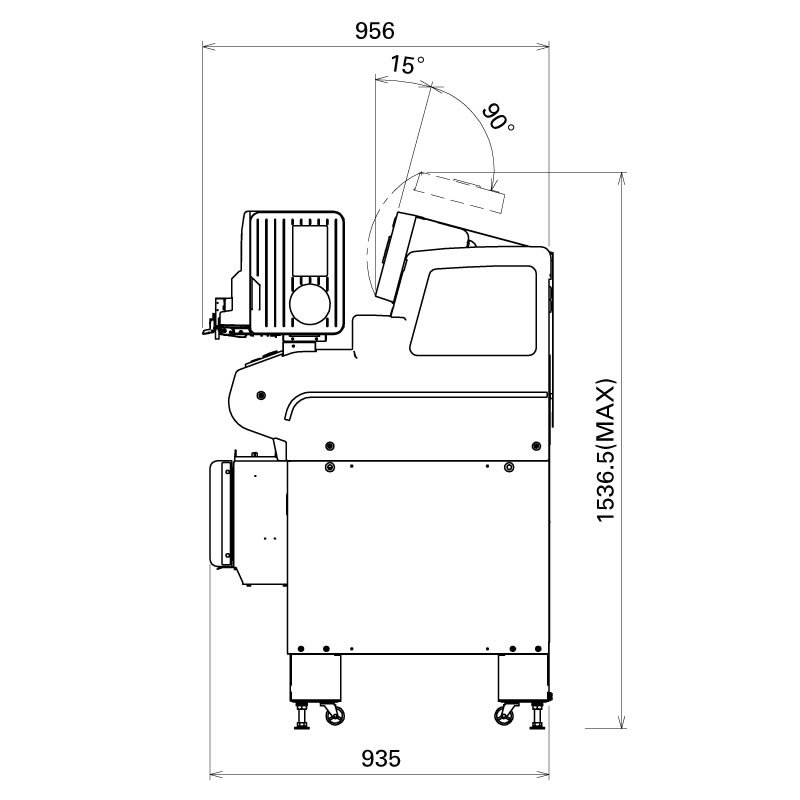

Dimensions
Applications
The SEMI-AUTOMATIC CLING WRAPPER MACHINE (AW5600FX) is designed for wrapping, weighing, and labeling a wide variety of fresh food products in supermarkets, food processing facilities, and retail packaging operations.
Benefits of the SEMI-AUTOMATIC CLING WRAPPER MACHINE (AW5600FX)
Designed to deliver flexible wrapping, reliable weighing, and professional labeling for a wide variety of fresh food products while improving retail packaging efficiency.
Flexible Product Handling
Efficiently wraps fragile trays, irregular-shaped packages, and trayless products such as fruits, vegetables, and cheese.
High Wrapping Speed
Delivers packaging speeds of up to 17 packages per minute, improving productivity in supermarkets and food processing facilities.
User-Friendly Operation
The intuitive touchscreen interface simplifies weighing, wrapping, and label printing while reducing operator errors.
Eco-Friendly Labeling
Supports both die-cut and linerless labels, reducing waste while allowing customized, high-quality product labels.
Easy Cleaning & Maintenance
Food-contact components can be removed easily for cleaning, while the open machine design simplifies routine maintenance.
Professional Retail Packaging
Produces attractive, securely wrapped, and accurately labeled packages that enhance product presentation and customer appeal.
Advantages of SEMI - AUTOMATIC CLING WRAPPER MACHINE (AW5600FX)
Designed to maximize freshness, productivity, and operational efficiency with advanced Modified Atmosphere Packaging (MAP) technology.
Handles A Wide Range of Wrapping Needs
FX stands for flexible, and the AW-5600FX is superb at wrapping a challenging array of products. Fragile trays, irregularly-shaped trays, and even items without trays like whole fruits and cheeses are quickly and beautifully wrapped and labeled. The result is savings in film, power, and labor.

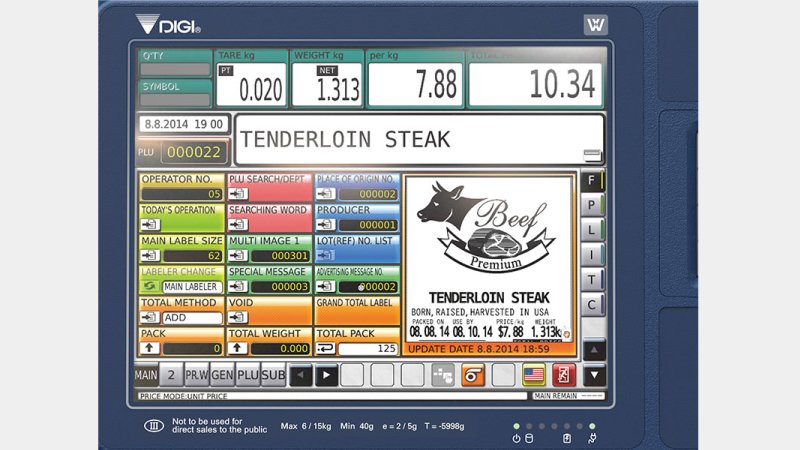

Ease of Use for Operators
The AW-5600FX’s user interface supports users as they respond quickly to store needs. With fewer screens to tap through, labels are quick and simple to create and print, even for first-time users of weigh-wrap-labelers. Operators can preview the label right on the 12.1” full-color display and print only what is needed.
Easy Clean-Up, Every Time
DIGI knows that for food retailers, cleanliness is crucial. That’s why the AW-5600FX is designed to be incredibly easy to clean. The parts that come into direct contact with food can be removed in seconds and washed in water. Also, the entire unit sits well clear of the floor to accommodate mopping and sweeping.
Catch the Shopper’s Eye While Saving on Labels
The AW-5600FX automatically adjusts the label size to fit various amounts of text and graphics. Custom labels are printed on a continuous roll of linerless labels and cut according to the size needed. The new, higher resolution of 300 dpi makes the fine print for nutrition and allergen information crisp and easy to read. There’s even a twin-labeler option for POP labelling (see “Variations” tab).
